The HPE SR Gen10 Plus Controllers feature increased performance and reduced latency access to NVMe storage devices for HBA and RAID modes.

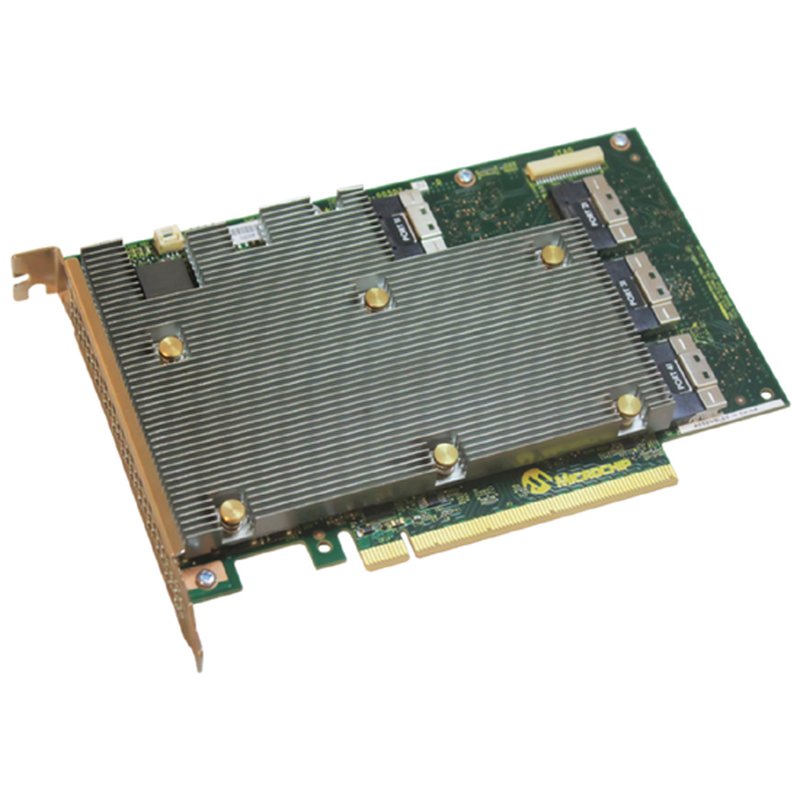

HPE SR932i-p Gen10+ (32 Internal Lanes/8GB Wide Cache) PCI Plug-in Storage Controller
The HPE SR Gen10 Plus Controllers feature up to 46 GB/s bi-directional throughput and up to 3.5M IOPs.
Up to 12 GB/s throughput and up to 850K IOPs via high-speed 144b DDR4 8 GB cache with integrated cache protection.
Transfer rate: Up to 46 GB/s of bi-directional throughput and up to 3.5M IOPs
Supported disk enclosure: N/A
Servers supported: Refer to HPE SR Gen10 Plus Controllers QuickSpecs for details.
Cache: high-speed 144b DDR4 8 GB cache with integrated cache protection
Certifications: EMC, CE, CNS, CT, FC, IC, KC, VC, EMC Doc, CE, C-tick, FCC, KCC, VCCI, BSMI, UL, EN 60950 and 62368, AU_NZ LoA and SDoC, RoHs, TW and EU
Additional features: See HPE SR Gen10 Plus Controllers QuickSpecs for additional details.
Ports: 32 internal tri-mode ports (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 32 direct-connected SAS/SATA/NVMe devices
RAID levels: RAID 0, 1, 1 ADM, 10, 10 ADM, 5, 6, 50, 60
Form factor: Full-height, half-length PCIe stand-up card (SR932i-p) or Type-a Modular (SR416i-a)
Warranty: 3Year parts only
Detailed product description: HPE SR932i-p Gen10+ (32 Internal Lanes/8GB Wide Cache) PCI Plug-in Storage Controller
Weight: 312G (11 oz)
Dimensions: 111.15 mm × 167.65 mm (4.376" H × 6.6" L)
Secure encrypted drives: Not supported at this time
Storage protocol: 6 G SATA, 6 G/12 G/24 G SAS, Gen 3/Gen4 NVMe
Storage management: Smart Storage Administrator (SSA)
