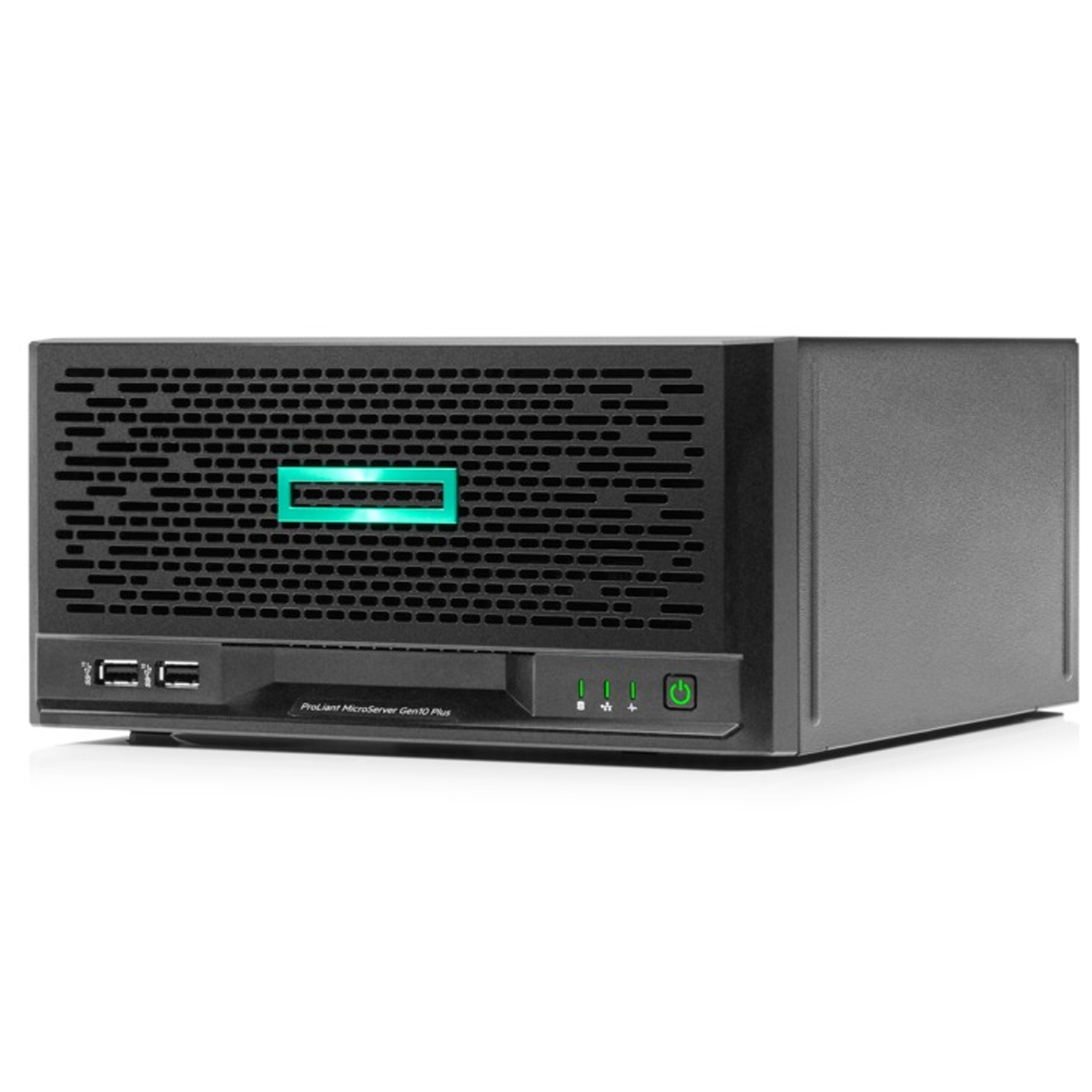

HPE MicroSvr Gen10+ E-2224 16G NHP Server



For any queries:


Please Contact Us If You Are Interested In This Product


The HPE ProLiant Micro Server Gen10 Plus server, powered by up to four cores in the Intel Xeon E Processor and up to 32 GB of 2666 MT/s DDR4 ECC UDIMM, delivers just-right performance for small business applications.


HPE ProLiant MicroServer Gen10 Plus E-2224 S100i 4LFF-NHP 180W External PS Server

What's New

  • Supports Intel Xeon 2200 processor series and Pentium G processors, providing both compute power and affordable cost.
  • HPE iLO 5 provides both Silicon Root of Trust and remote management to the server supporting iLO 5 standard and essential features, you can also upgrade to HPE iLO 5 Advanced.
  • Four onboard NIC ports provide enhanced networking capability versus previous generations.
  • Expansion slot for more flexible usage - one x16 bandwidth connector.
  • The most compact design of a microserver ever Half the height compared to the previous generation, it can be placed horizontally or vertically.


Processor Core Available : 4 core

Processor Cache Installed : 8 MB L3

Processor Name : Intel Xeon E-2224

Processor Number : 1

Processor Speed : 3.4 GHz

Memory Type : HPE DDR4 Standard Memory



NVDIMM Capacity : N/A

Power Supply Type : 180W external power adapter

Expansion Slots : 1x 16 PCIe Gen3 Slot

Network Controller : Ethernet Controller 4-ports per controller

Storage Controller : 1 HPE Smart Array S100i

Form Factor : MicroServer

Warranty Standard Statement : Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part, 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/. NOTE: Warranty does not cover support for ClearOS. Support for ClearOS is provided by ClearCenter.

Weight (imperial) : 9.33 lb

Weight (metric) : 4.23 kg

Product Dimensions (imperial) : 4.58 x 9.65 x 9.65 in

Product Dimensions (metric) : 11.6 x 24.5 x 24.5 cm

Detailed Product Description : HPE ProLiant MicroServer Gen10 Plus server with one Intel Xeon E-2224 processor, 16 GB memory, four large form factor non-hot plug drive bays and a 180W external power supply
